Morimoto

Morimoto 4Banger Ditch Light Kit 07-13 Silverado

Morimoto 4Banger Ditch Light Kit 07-13 Silverado

Regular price $697.50
Regular price $837.00 Sale price $697.50
Sale Sold out
Power Level
Color

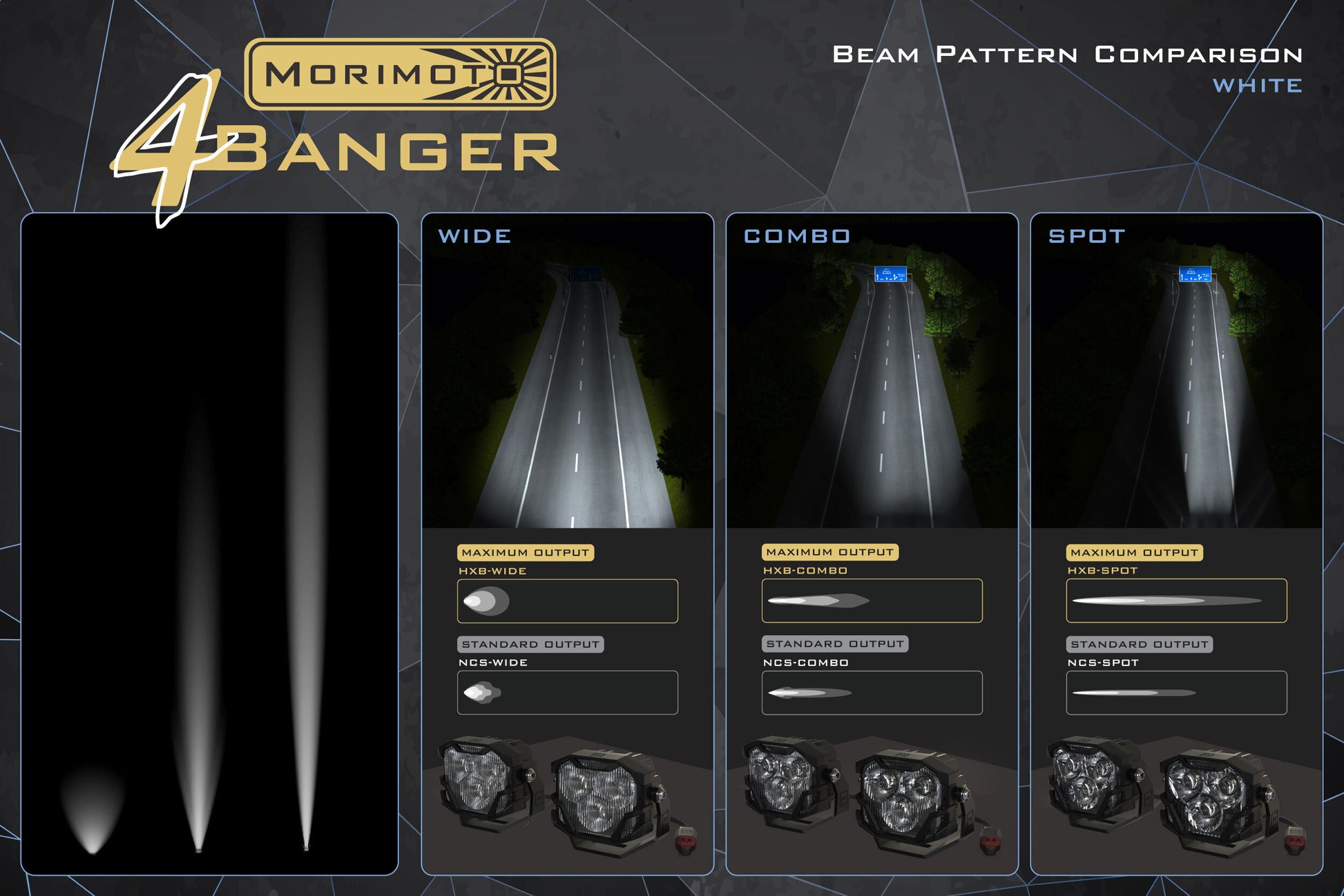

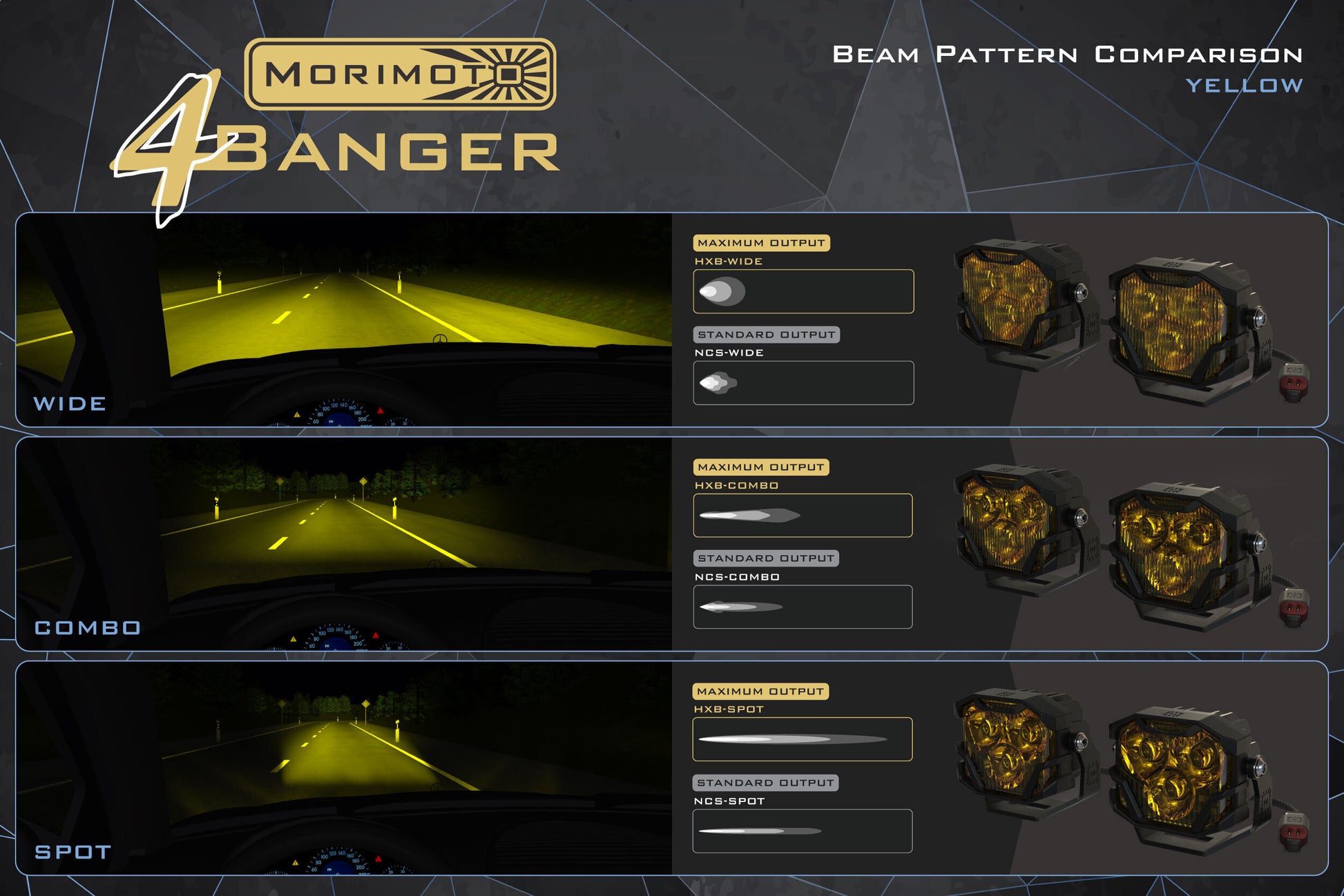

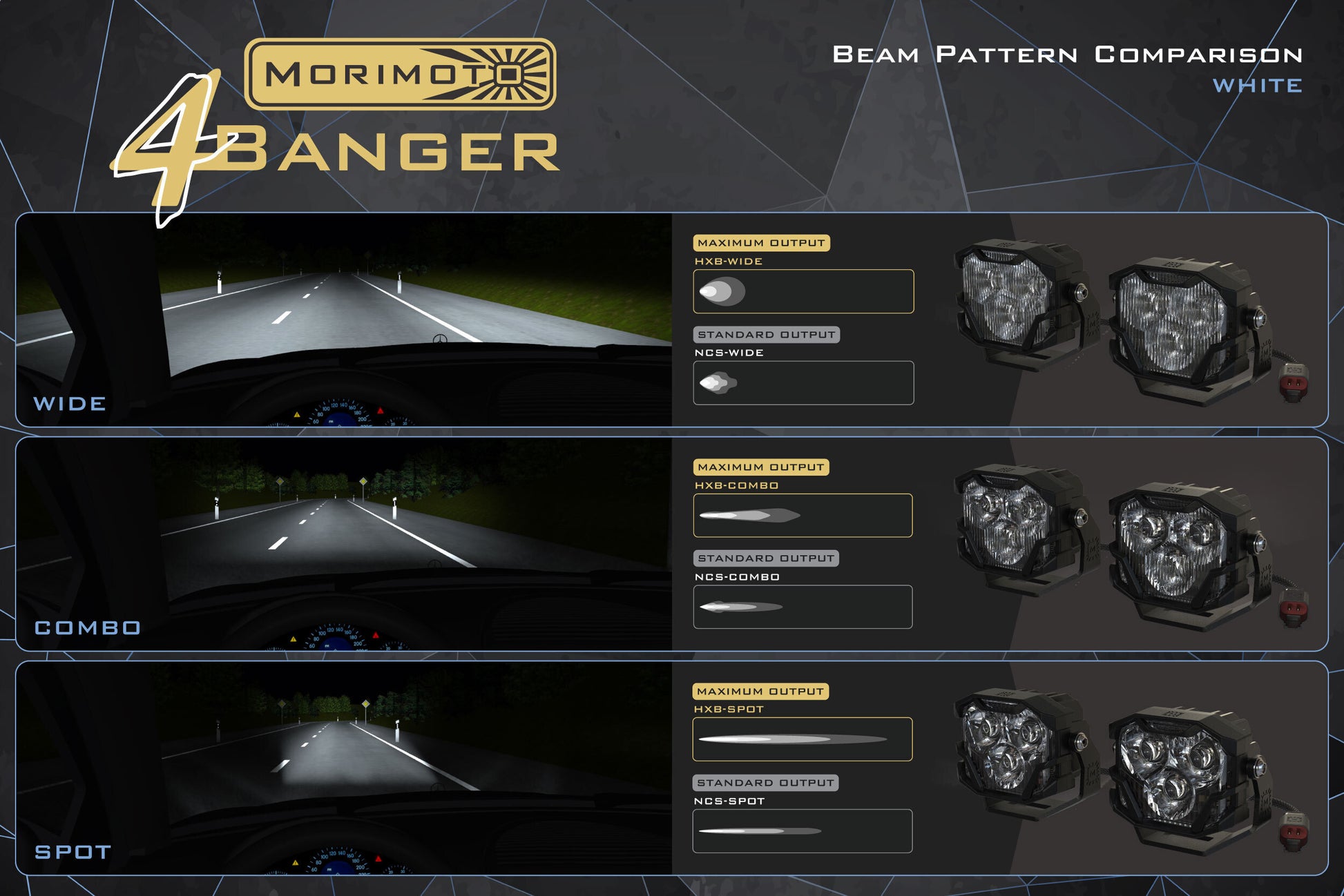

Optic

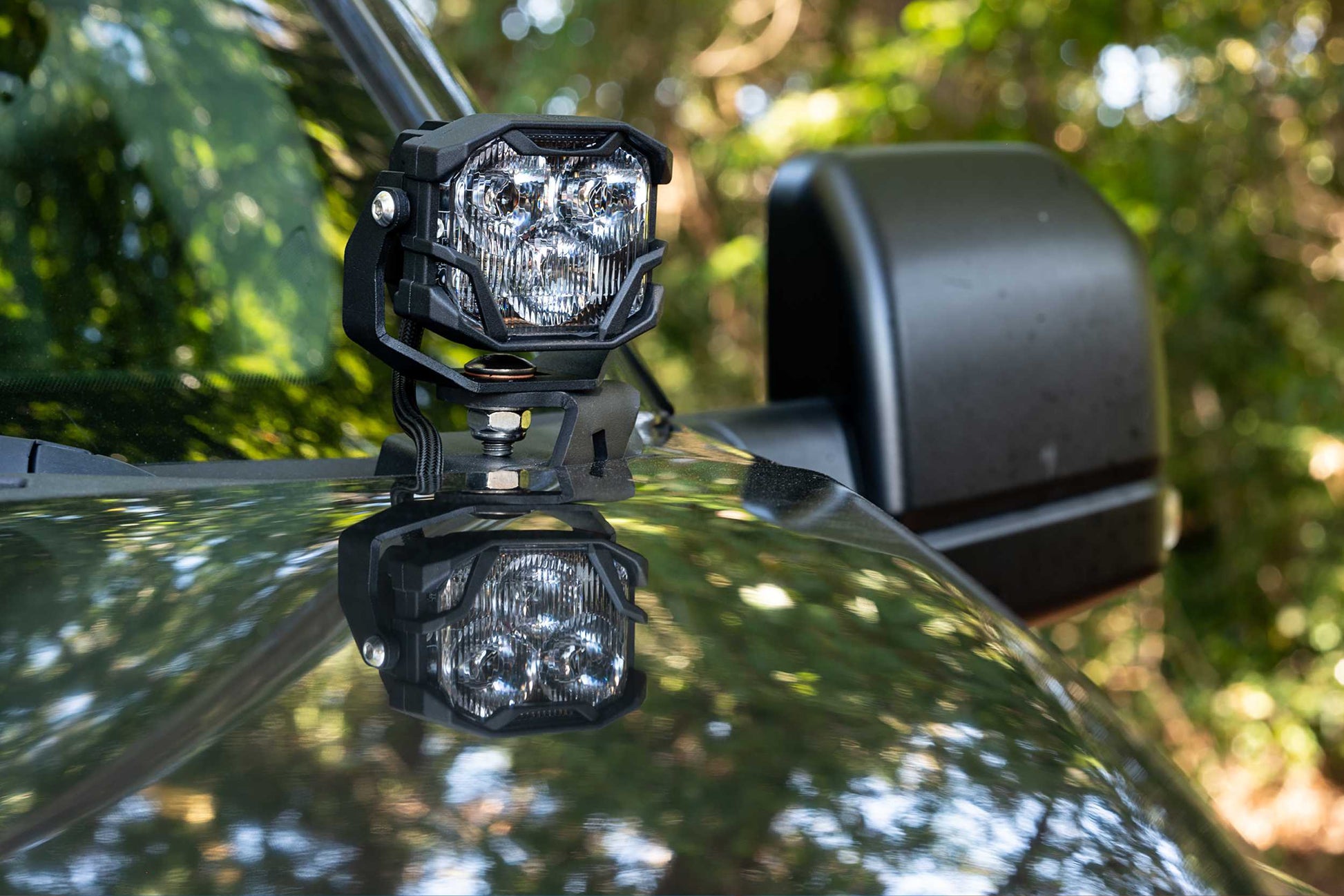

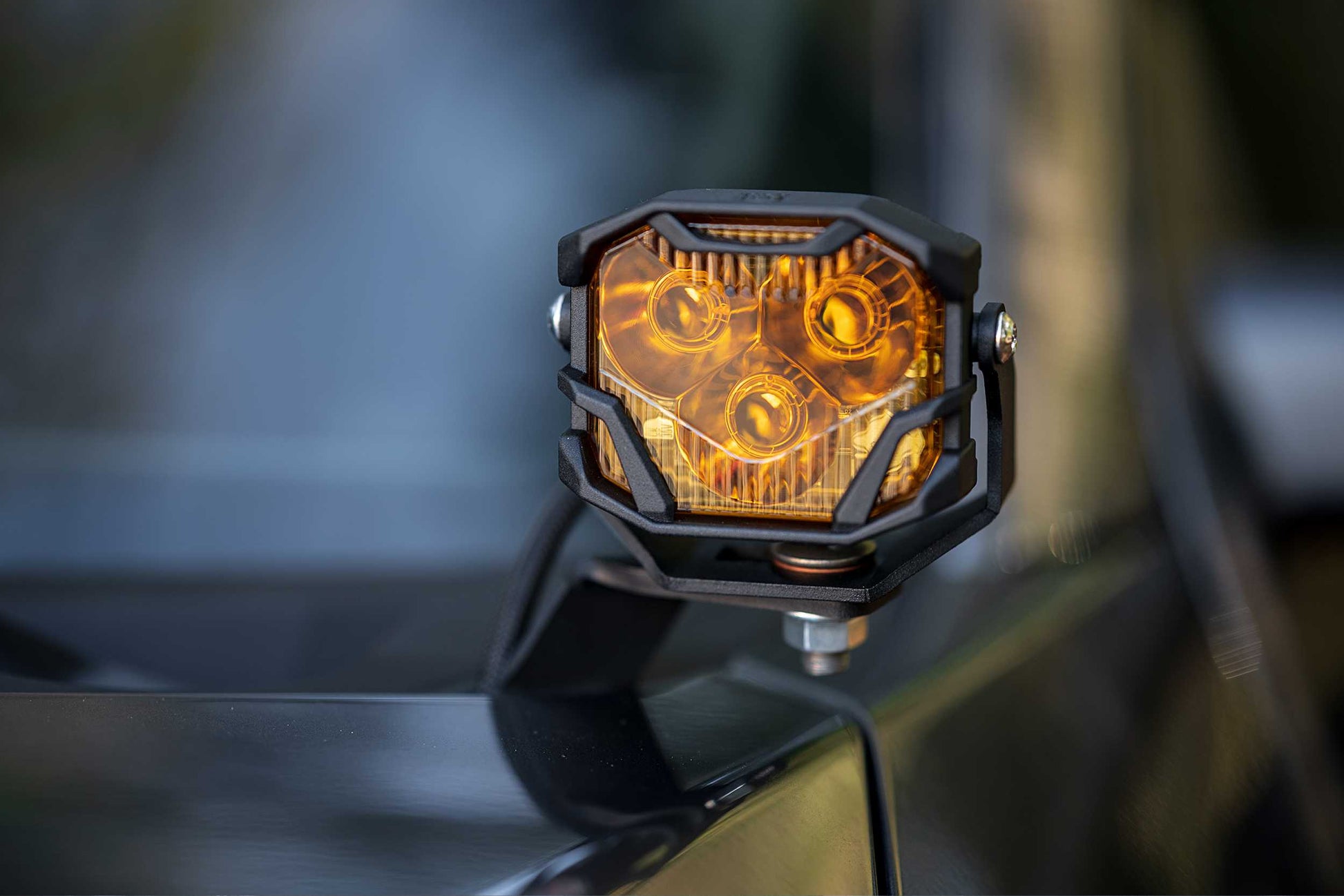

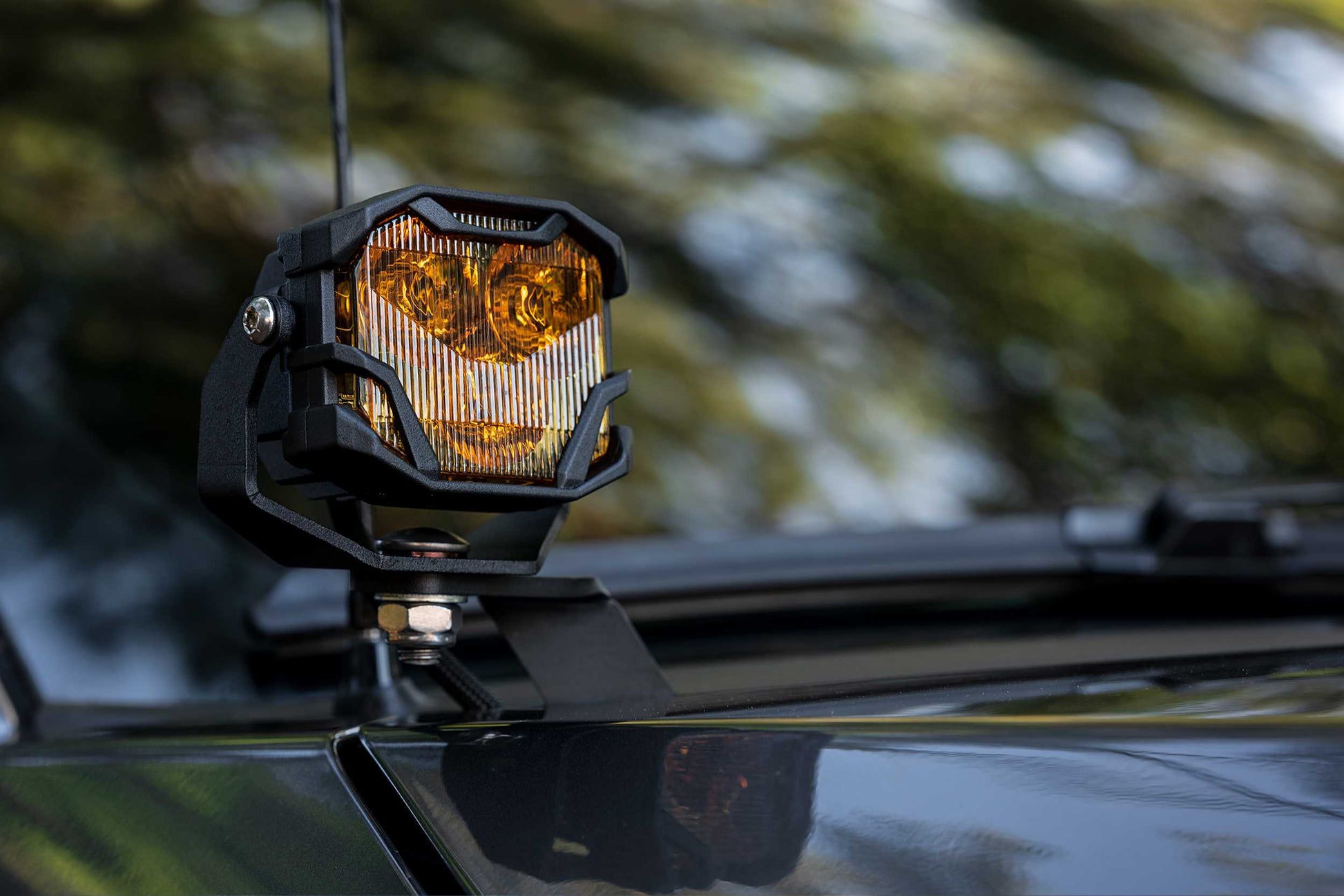

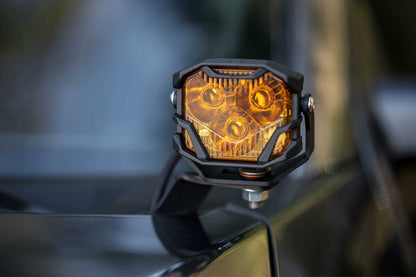

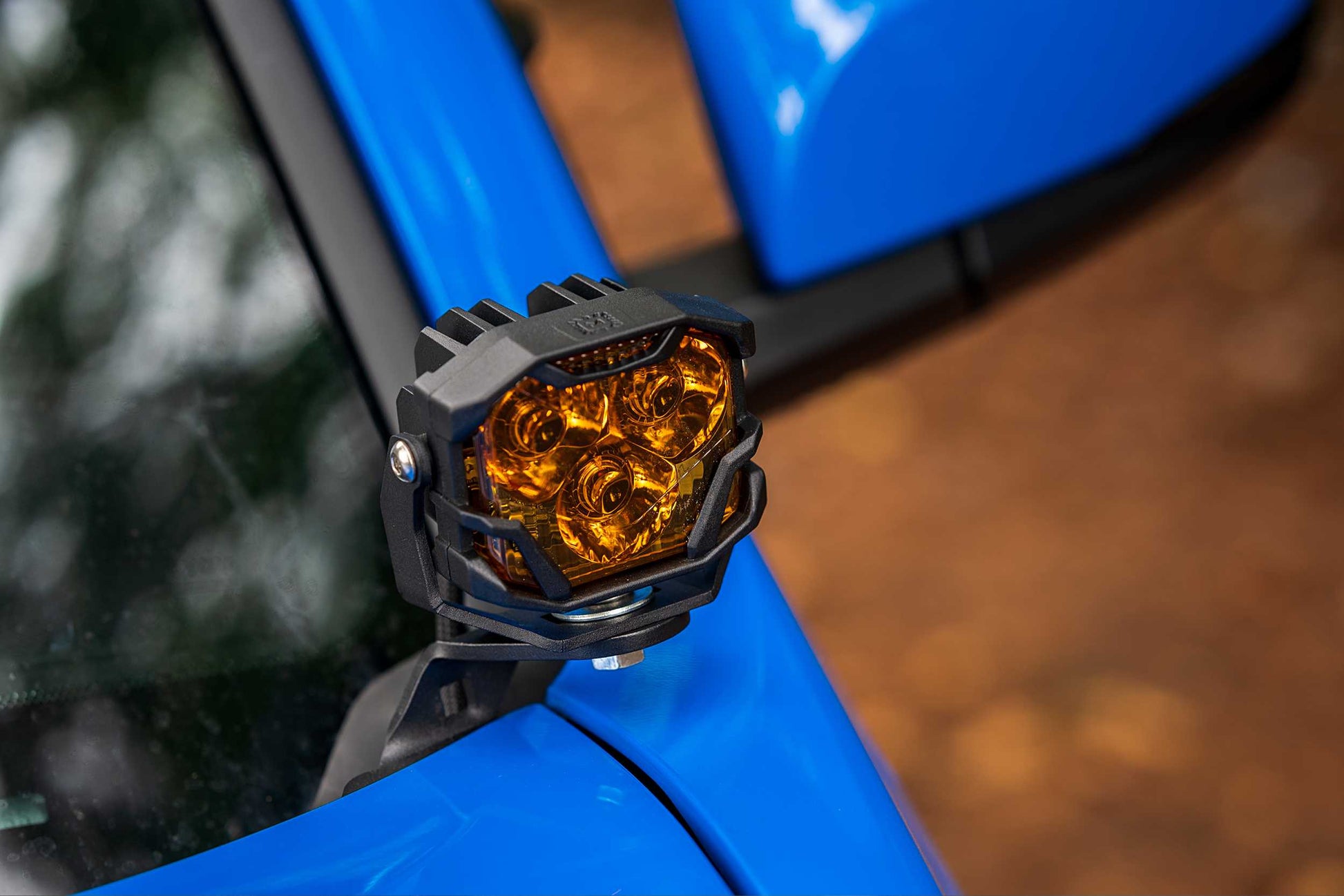

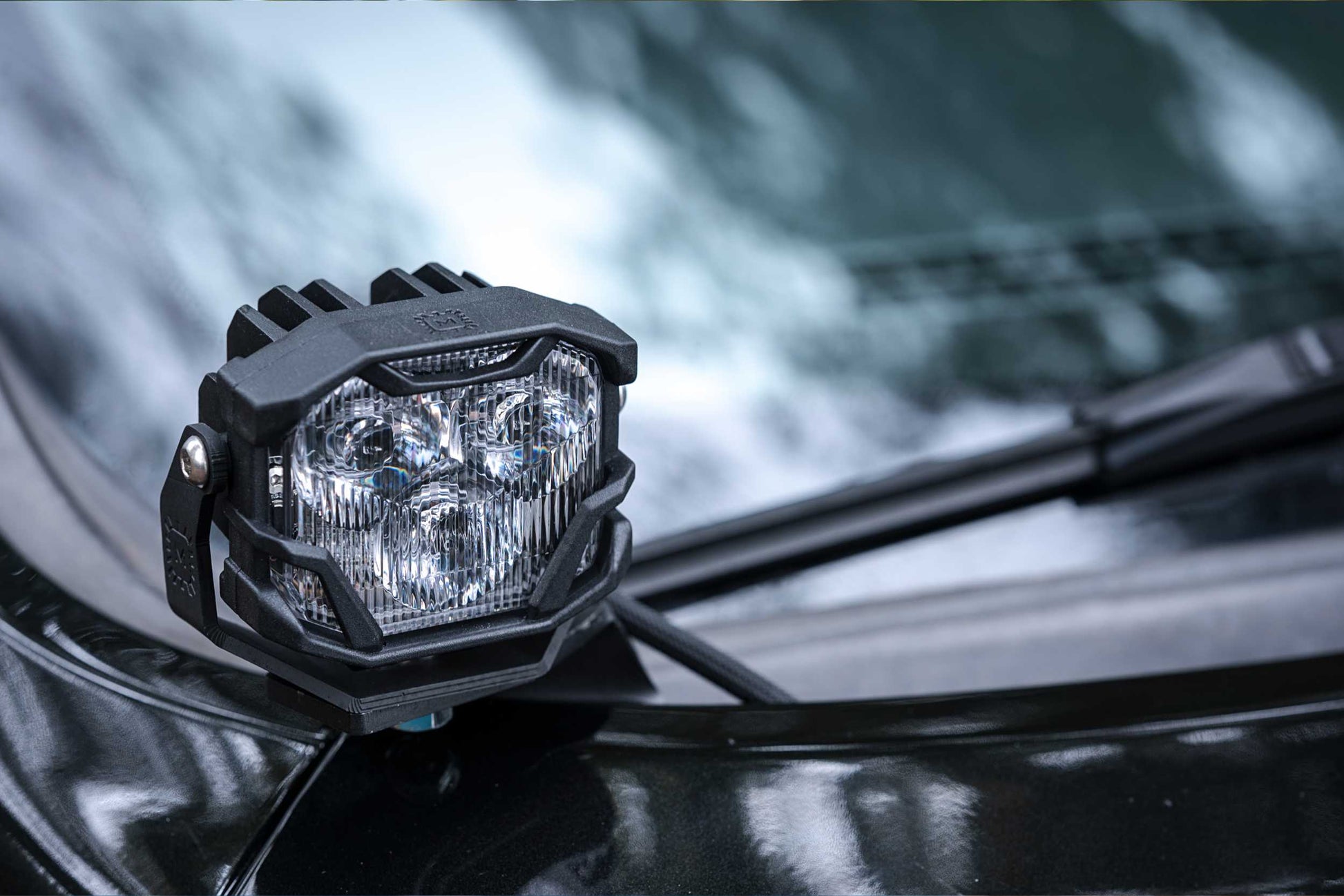

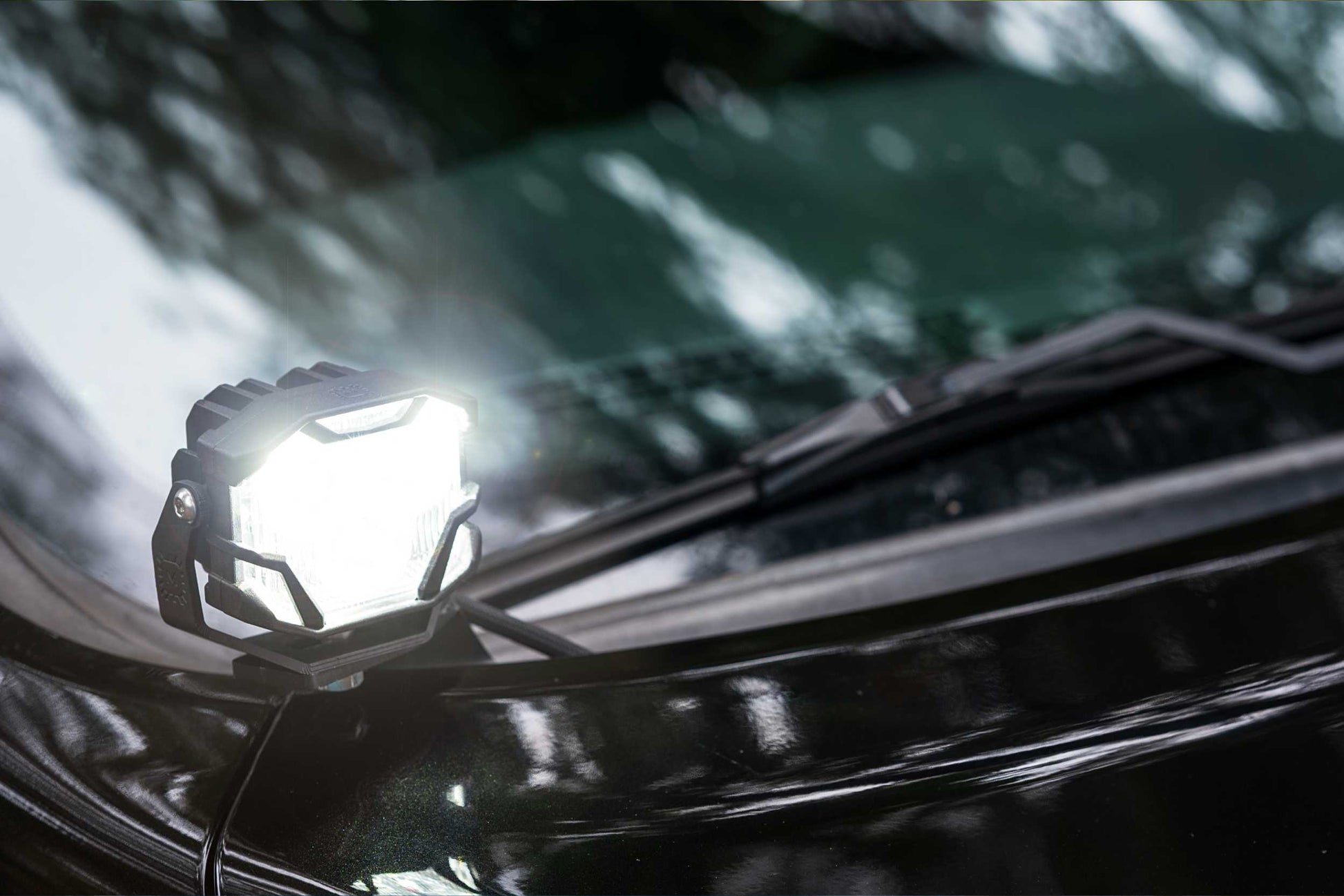

Bolt on Brighter: The Morimoto 4Banger A-Pillar LED system is the perfect solution for more light, aimed exactly where you want it. From long-range spot-lights for high speed driving to ditch lights to illuminate the side of the road, our A-Pillar kit is all about versatility. Select a set of high performance 4Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness. Engineered Fitment: Morimoto's A-Pillar kit for the 2007-2013 Chevrolet Silverado has been through numerous rounds of design, prototyping and testing directly on the truck to ensure perfect compatibility. Everything lines up with pre-existing mounting points to create an installation that is truly modification-free. Guaranteed. Yes, we agree this is a basic requirement, but you wouldn't believe the poor fitment we encountered from other well-known brands during development. It was mind blowing. Branches Beware: Each bracket is laser cut from 304 stainless steel, electroplated, then powder coated. Put simply, the side mirrors on your Silverado will rip off way before our A-Pillar kit even flexes a muscle. All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather). Reliability With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. Wiring & Cable Management: No sloppy wiring allowed. We have incorporated several mounting locations and cable routing clips on the stem of the bracket to direct the input wiring from your LED pods down into the engine bay. From there, you can plug n play with Morimotos switched relay wire harness for a clean and reliable install. Performance: Just like the brackets, every element of the patent-pending 4Banger LED pod light is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Optics are produced according to world-class standards. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. HXB Combo Beam: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger HXB Combo is an excellent aid to any set of high-performance headlights. Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight. Compatibility: Though they pair perfectly with the 4Banger LED pods, our superior A-Pillar brackets are compatible with LED pods from most other brands including Baja Designs, KC Hi-Lites, Rigid Industries, and Diode Dynamics. Street Legality: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an for auxiliary high beam. With a standard -4 degree aim, the beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can view those test reports in the compatibility section. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods, and are a friction + clip fit that installs with ease, and can be removed in seconds.

Specification

  • Length: 12
  • Height: 12
  • Width: 6
  • Prop65 Warning: Yes
  • DOT Compliant: Yes

Tech Specifications

  • Intensity: 55,500 Cd (@20 Min. / 21C Ambient) (555lux @ 10m)
  • Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
  • Input Voltage: 9-18V DC
  • Power: 20w
  • Current: 1.5A @ 13.2V DC
  • Dimensions: 82mm W, 67mm H, 60mm D
  • Light Source: 3x Nichia NCSW131F (5700K)

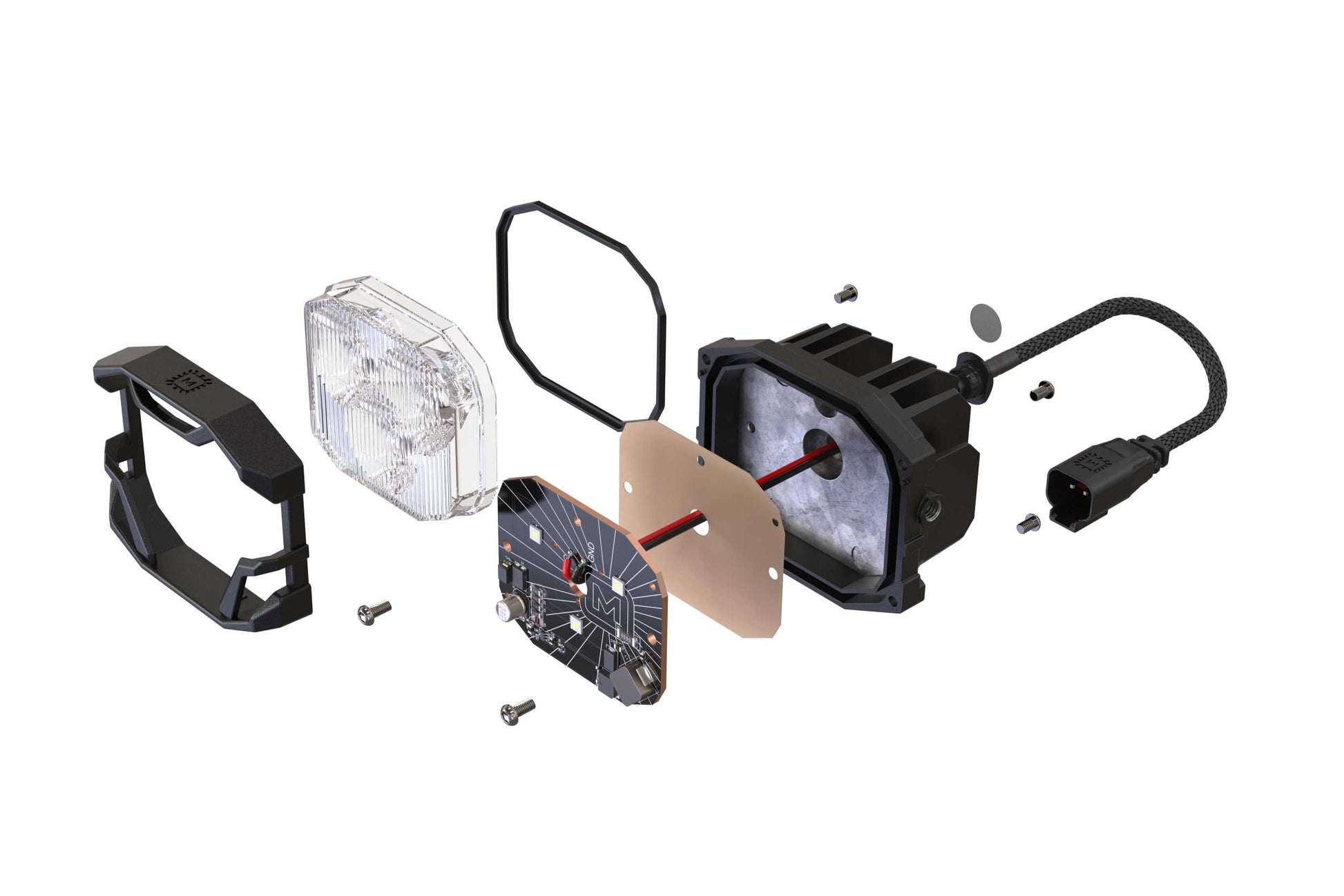

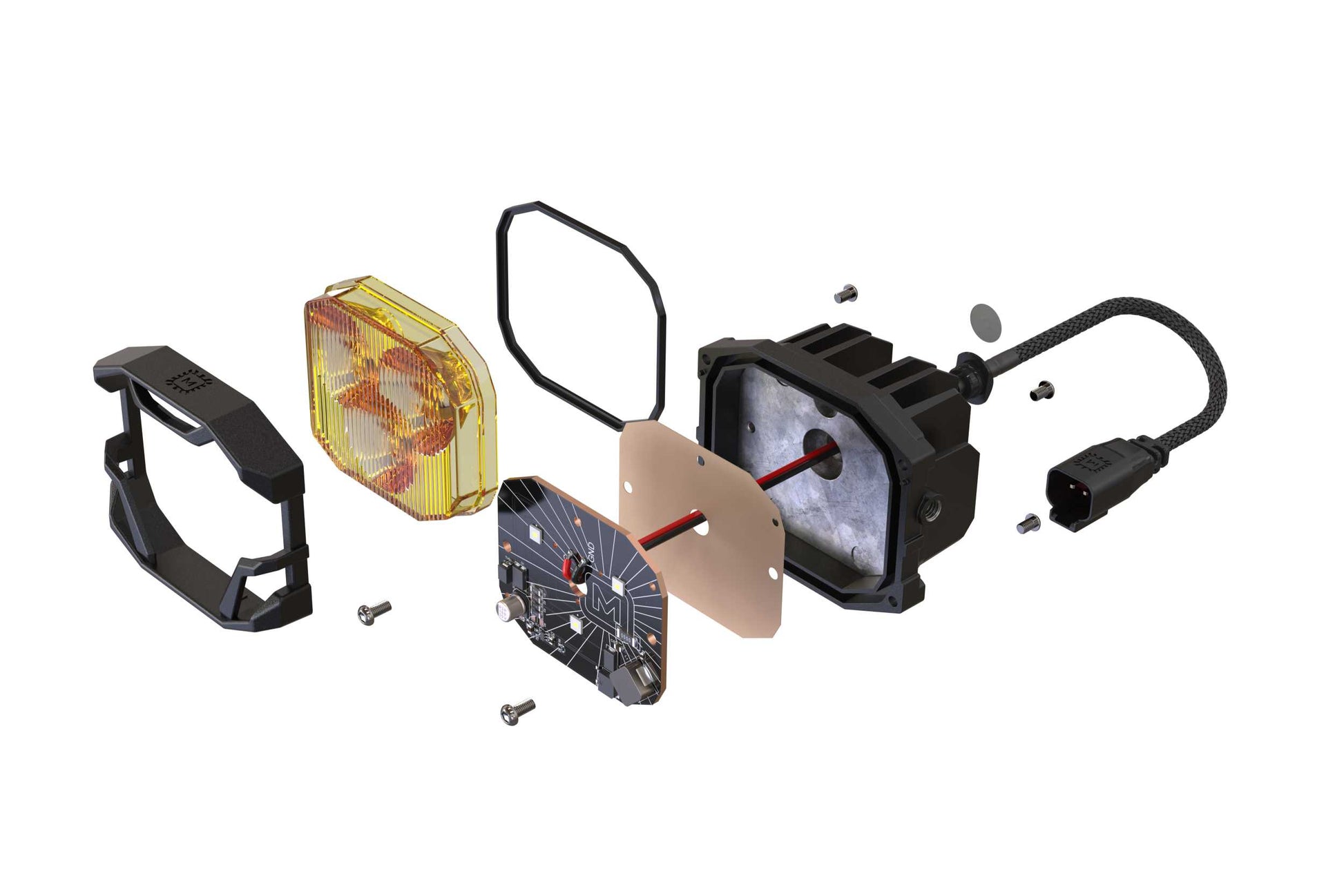

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
  • IP Rating: IP68K (Dust / High Pressure Water Resistant)

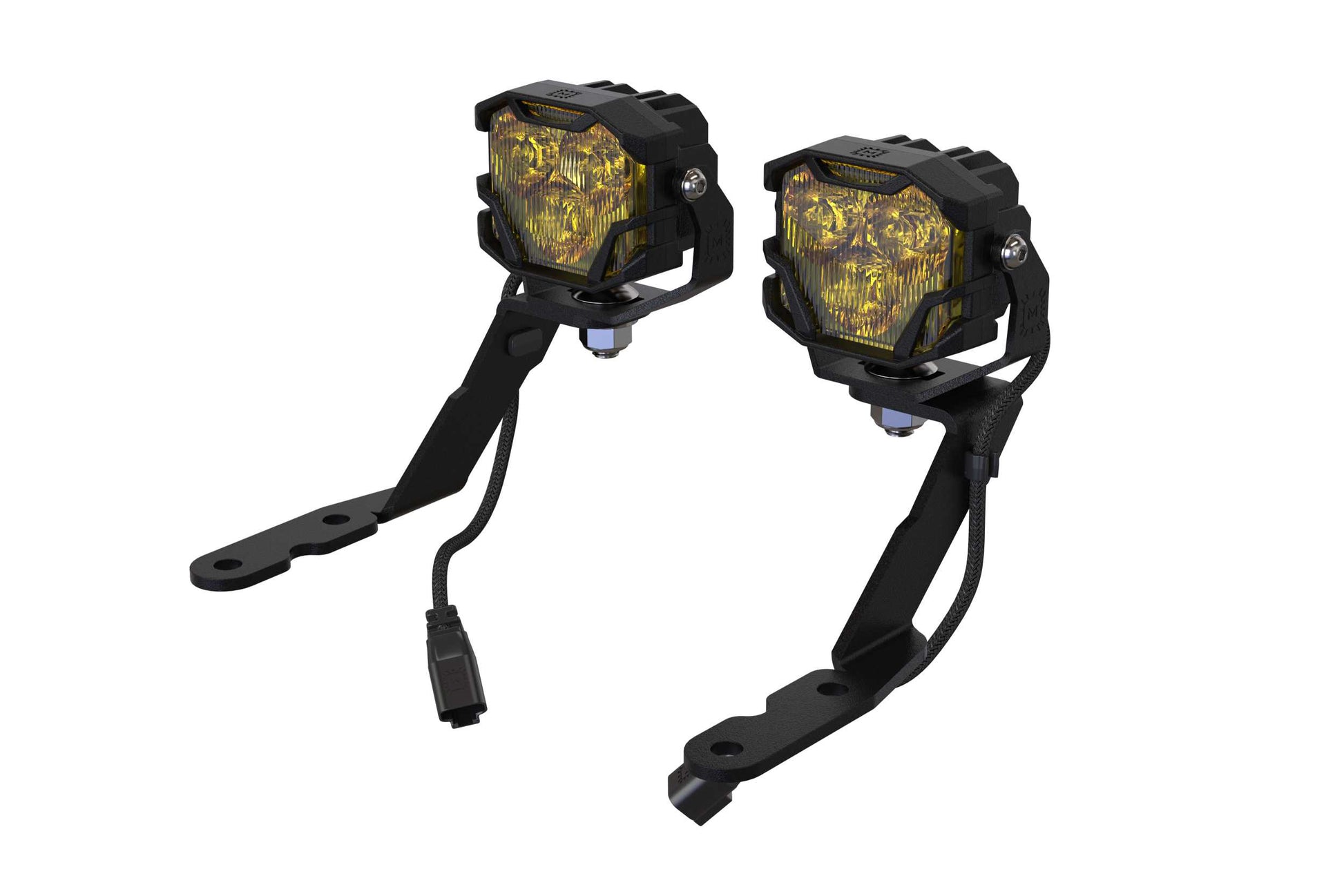

Whats Include

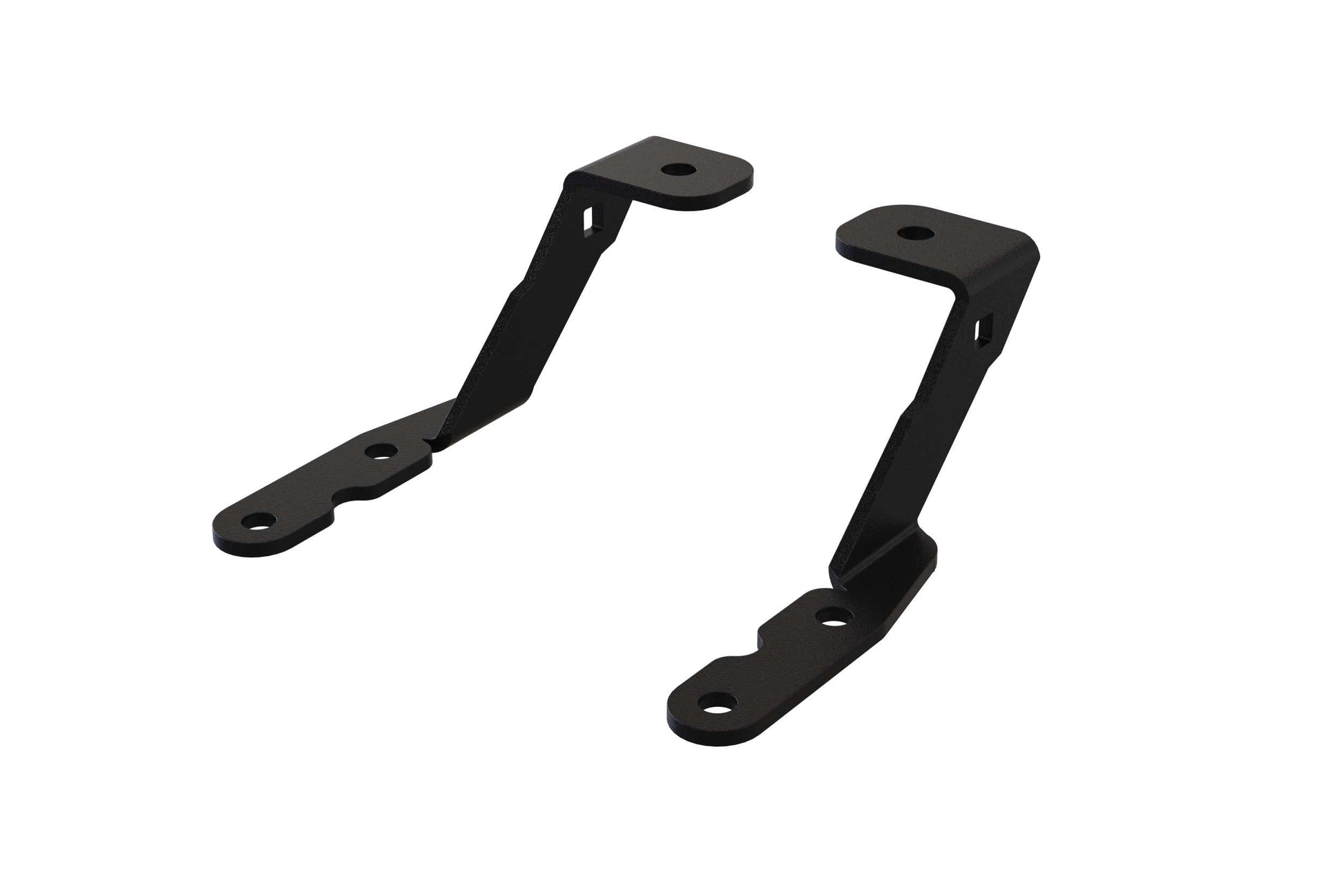

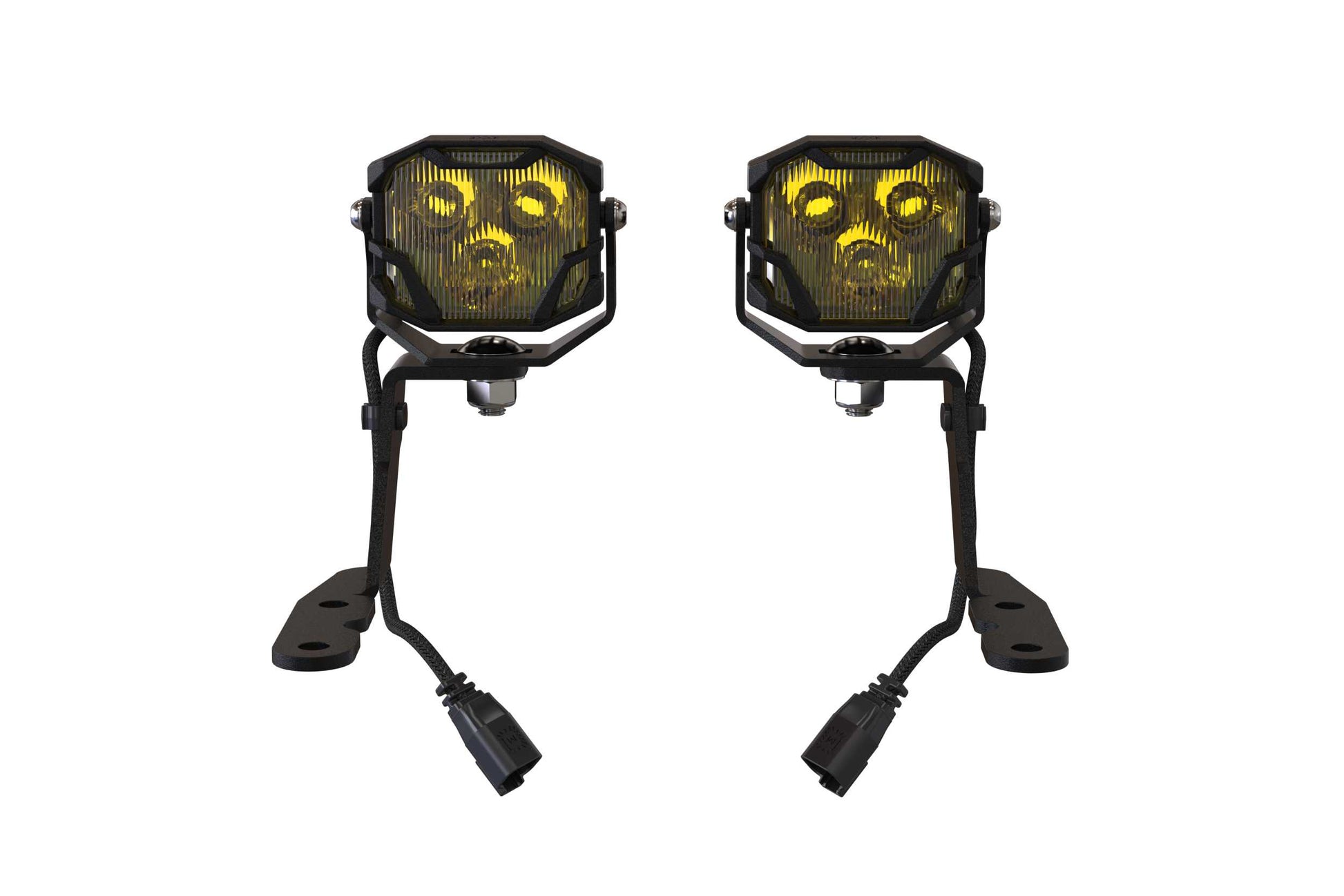

  • A-Pillar Brackets: 2x (One Pair) Morimoto 4Banger (BAF032 / Toyota Tundra) Pillar Brackets
  • Hardware: Stainless bolts & plastic cable clips
  • LED Pods: 2x (One Pair) Morimoto 4Banger (HXB White Combo Beam - BAF009)
  • Wiring: 1x Morimoto 4Banger Switched Relay Harness
  • Warranty: Limited Lifetime

Compatibility

  • Vehicles: Chevrolet Silverado (2007-2013)
  • Morimoto LED Pods: :4Banger NCS and HXB
  • Diode Dynamics LED Pods: SS3 Sport and SS3 Max
  • Baja Designs LED Pods: Squadron (all)
  • KC Hi-Lites LED Pods: Flex Era, C-Series, Gravity Pro6
  • Generic: Yes, but really?
  • 4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant (HXB Report) (NCS Report)

Component

  • Component 1: BAF032
  • Component 1 Qty: 1
  • Component 2: BAF009
  • Component 2 Qty: 1
  • Component 3: BAF000H
  • Component 3 Qty: 1
  • Component 4: BAF046
  • Component 4 Qty: 1
