PWM Harness: 2Stroke Anti-Flicker Modules (9006)(Set)

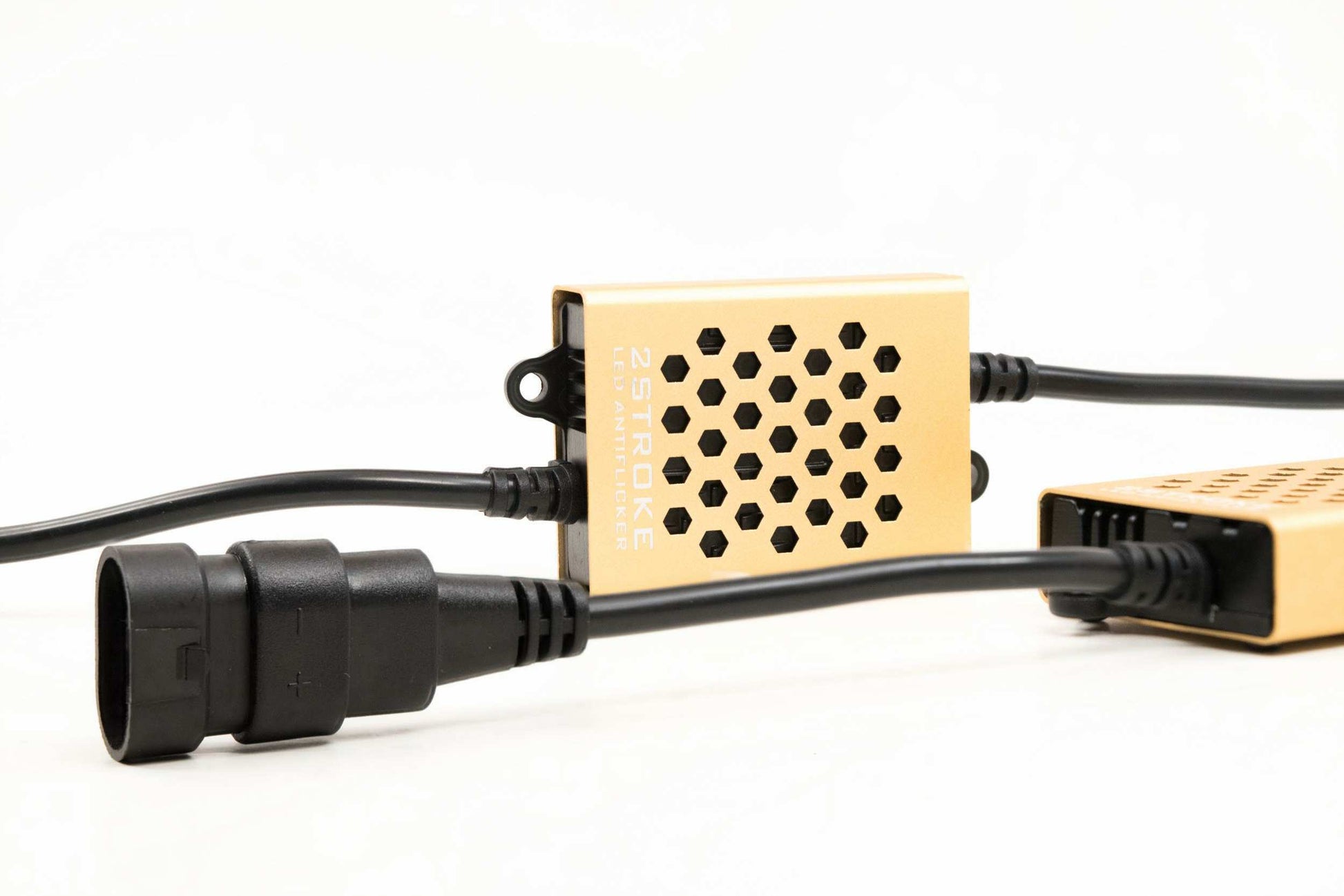

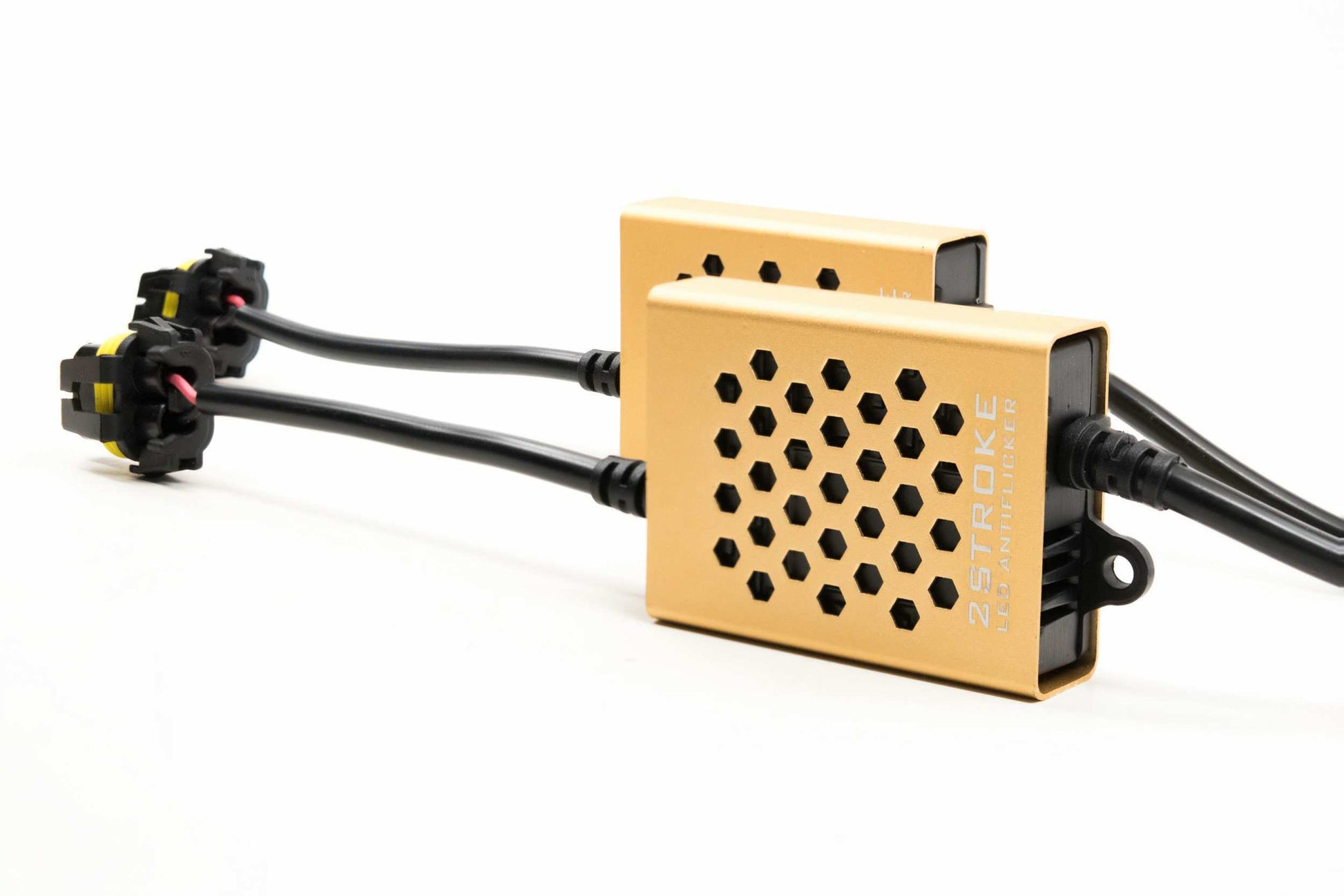

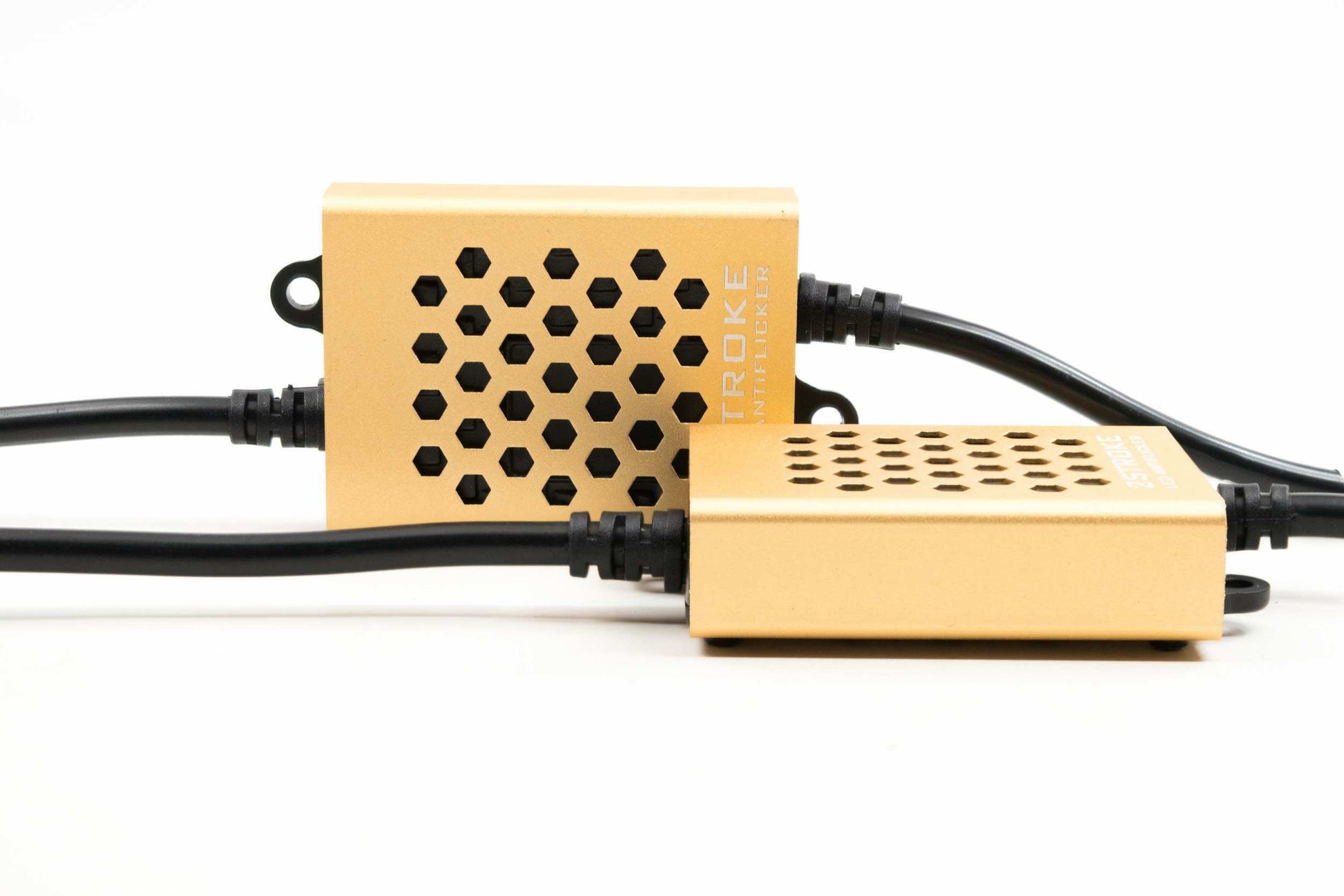

Flicker-Free: Is the way to be! But unfortunately if you're trying to run a set of LED headlight bulbs on a circuit that runs off pulsed voltage, then you're out of luck. Out of luck unless you've got a set of the 2Stroke Anti-Flicker harnesses that is! Designed: With some massive 10K mF Capacitors inside to help absorb the pulsing current coming from the factory wiring, then release it in a smooth fashion out into the LED bulb drivers, they're quite simple and effective. In and Out: No need for complicated wiring to solve this common issue. The 2Stroke Anti-Flickers are easy to setup. With a standard 9006 Male Input and a standard 9006 female output - in most cases you can just "plug n play" in between the factory wiring and the Drivers on your bulbs. Daytime Running Lights: Often run off both pulsed voltage, and low voltage. It's important to understand which one your car uses - because if you're having issues with a low voltage setup, these will not solve that problem (since they don't increase the voltage coming from the car... they just smooth it out). Construction: Can't fault that! These things are really nice looking. With a matte black extruded aluminum shell surrounding the goods inside, they're well protected and weather resistant too. High quality titanium-colored techflex mesh insulation provides extra abrasion resistance for the input and output wiring too.

Specification

• Length: 0.5
• Height: 8
• Width: 6
• Prop65 Warning: Yes
• DOT Compliant: Yes

Tech Specifications

• Length: Approx. 10in / 254mm
• Material: Anodized Aluminum
• INPUT: 9006 Male
• OUTPUT: 9006 Female

Whats Included

• Modules: 2x (One Pair) Morimoto 2Stroke Anti-Flicker Modules (9006)
• Warranty: 2 Years

Compatibility

• LOW/HIGH BEAMS: Normal / PWM Pulsed
• DRLS: Normal / PWM Pulsed
• ELECTRICAL SYSTEMS: 12V
• LED HEADLIGHT BULBS: All brands
