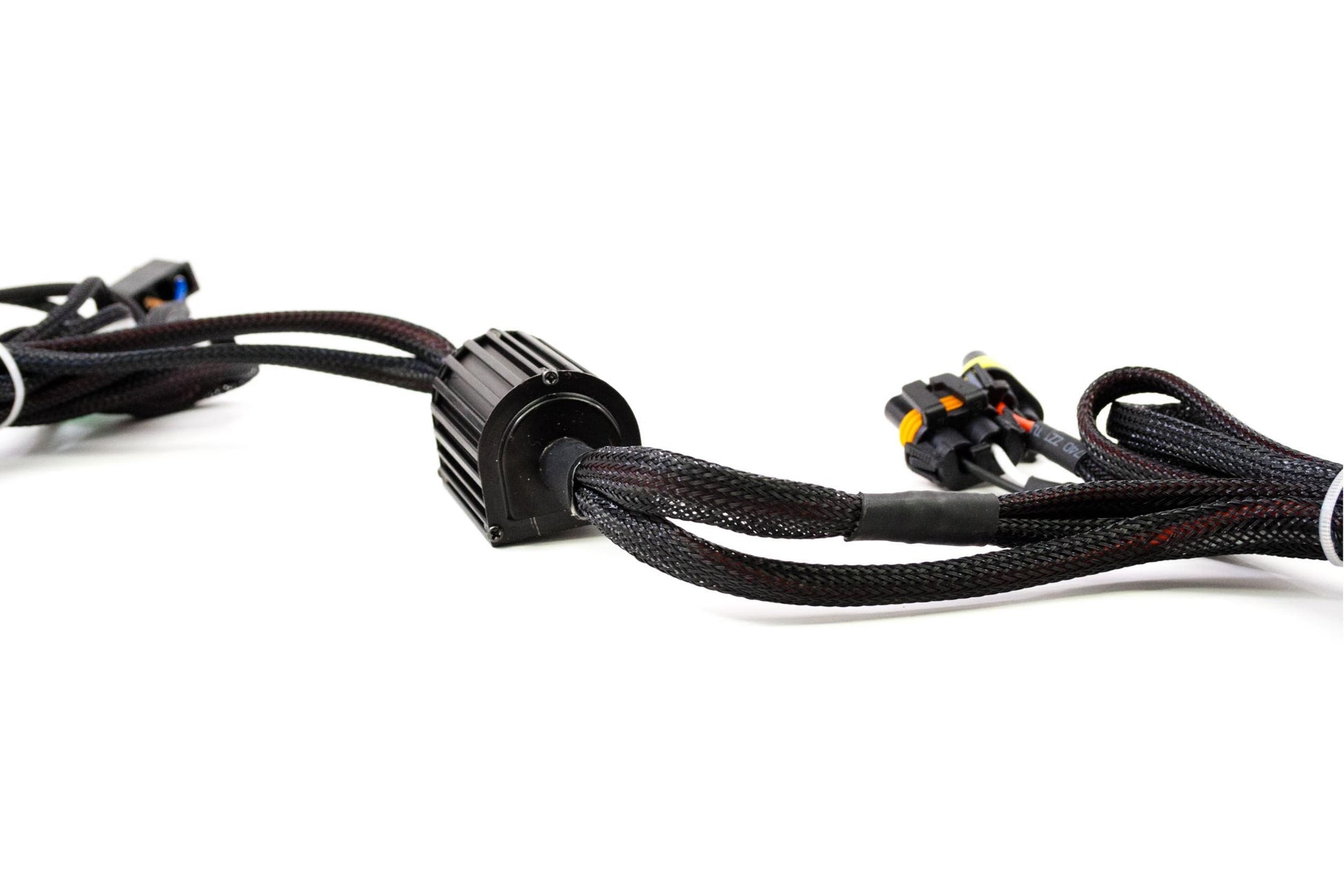

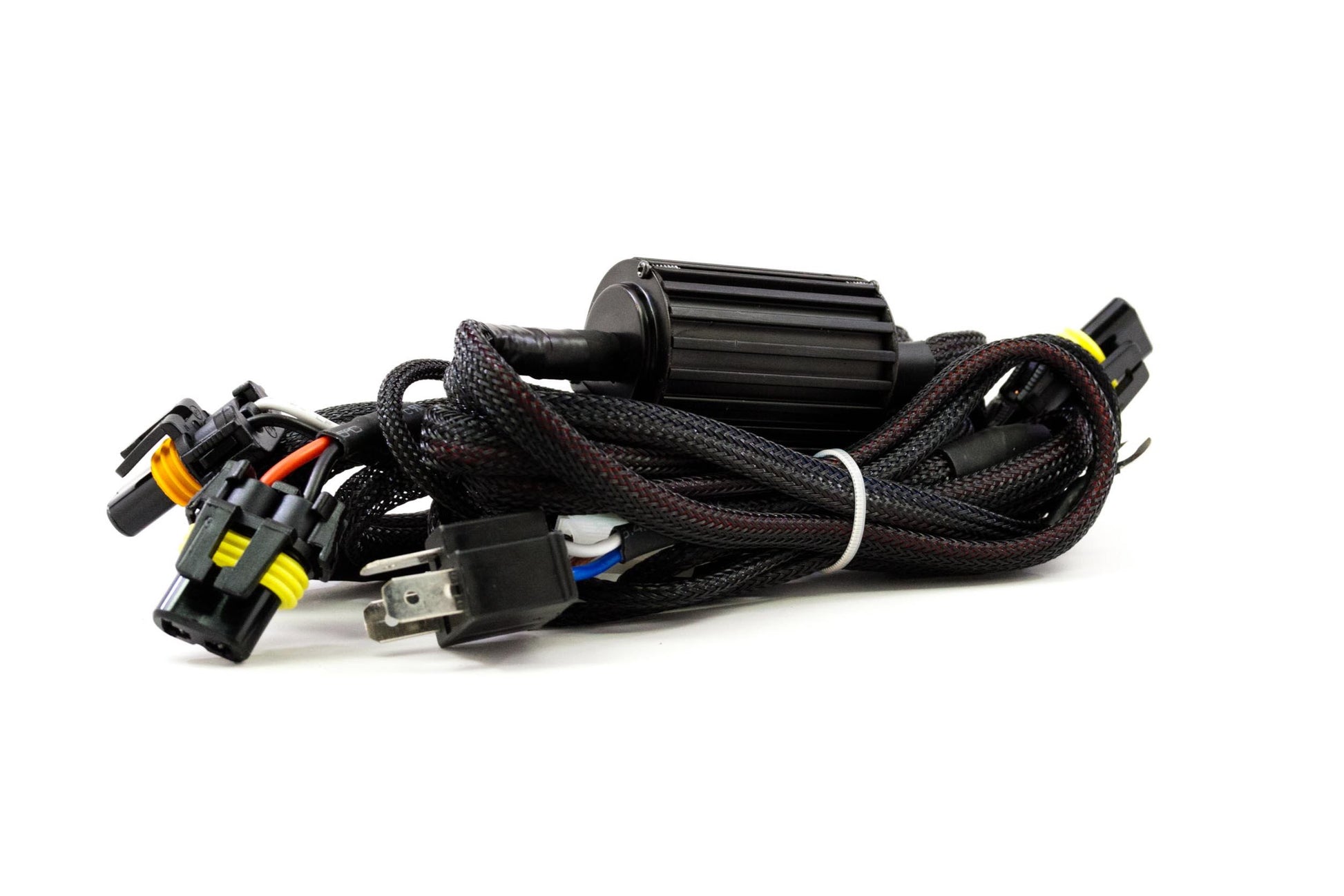

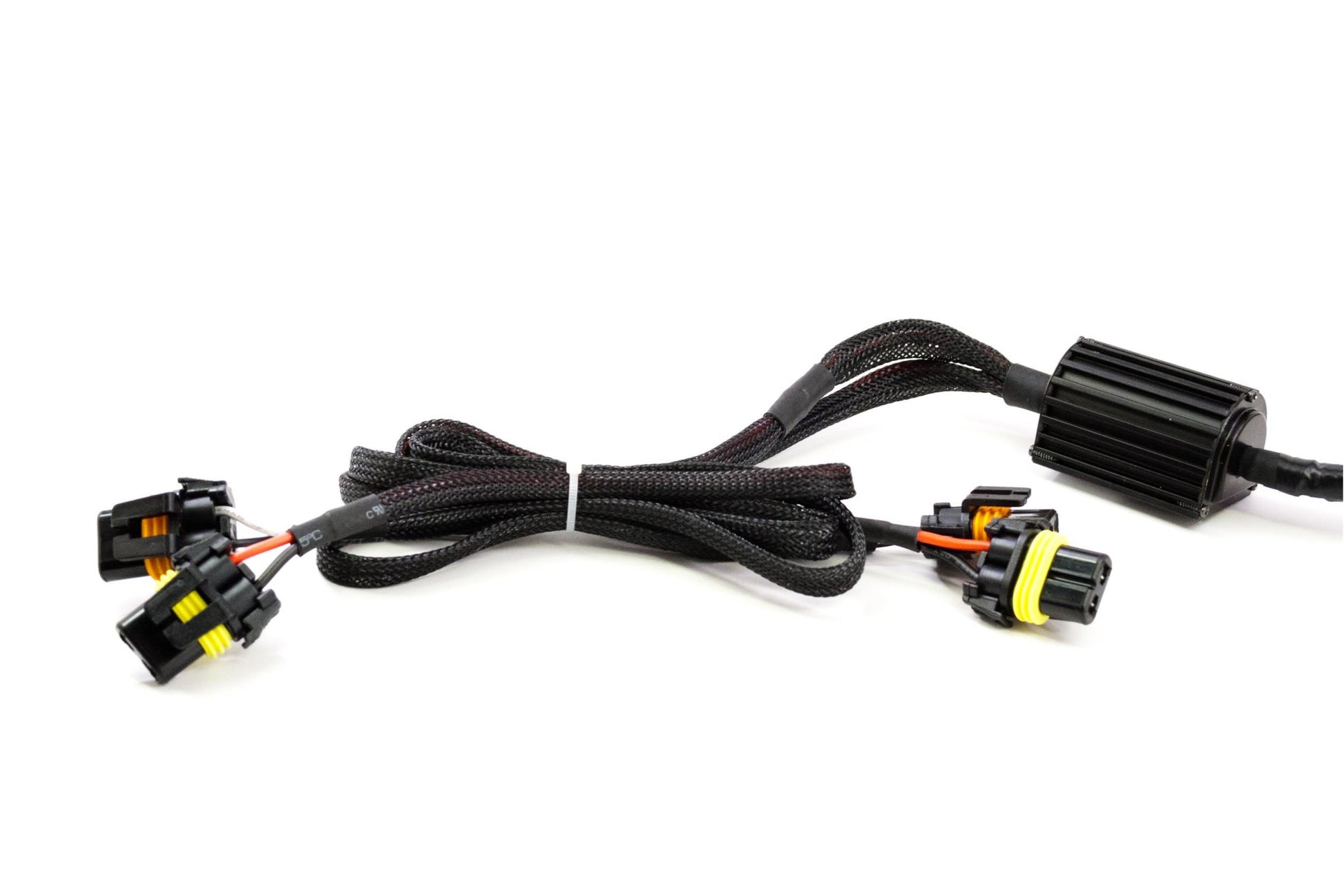

Relay Harness: MotoCycle Dual Output (H7)

Relay Harness: MotoCycle Dual Output (H7)

Regular price $34.00
Regular price $40.80 Sale price $34.00
Sale Sold out

Power Delivery: The MotoCycle relay harness is designed to deliver steady voltage to your HID system directly from the bike's battery. Factory headlight outputs are really only designed to power a halogen light bulb and with the not-so-stable electrical systems on motorcycles - that could mean bad news for the longevity of your upgraded headlights without a harness. One of a Kind: The Morimoto H7 Dual-Output Motorcycle specific harness is the first and only high-quality harness on the market that's designed for retrofitting HID's into the headlights on motorcycles. It's been a staple in our product line for years as the right go-to for the job. In Comparison: To any other harness we offer, the MotoCycle spec's wire lengths are ideal for the layout on a motorcycle. It is not designed for a car's engine bay and has to be modified or rigged to work on a bike - this one should be ready to go out of the box. Light Up: Each harness will power two HID ballasts from one input trigger. Perfect for retrofitting a pair of projectors or HIDs in your low beams (or high beams) Work of Art: Aside from being a technical masterpiece that works like a charm, it's also a work of art. With its braided TechFlex insulation and sleek-looking black anodized relay - it will surely look factory-fresh when routed through your fairings.


  • Length: 1.4
  • Height: 14
  • Width: 4.7
  • Prop65 Warning: Yes
  • DOT Compliant: Yes

Tech Specifications

  • INPUT TRIGGER: 1x H7 Male
  • BALLAST OUTPUTS: 2x 9006 Female
  • 12V POWER: 1x Nickel-Plated Ring-Type
  • GROUND: 1x Nickel-Plated Ring-Type
  • FUSE: Inline 25A

Whats Included

  • Wiring: 1x Morimoto MotoCycle Relay Harness (H7 / Dual Output)
  • Warranty: 2 Years


  • FITMENTS: Motorcycles w/ H7 Low Beam or High Beam
  • HID SYSTEMS: 35w or 55w
